Customized Stainless Steel Screw Conveyor with Hopper for Food Grade Material Handling

Customized Stainless Steel Screw Conveyor with Hopper for Food Grade Material Handling

ब्रांड नाम: WeSeW
मॉडल संख्या: KF001-2
एमओक्यू: 1 पीसी
कीमत: US$800~US$8,000 per pc
भुगतान की शर्तें: टी/टी, वेस्टर्न यूनियन
आपूर्ति करने की क्षमता: कांच की बोतल, प्लास्टिक की बोतल
विस्तार से जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
CE/UL
प्रतिरूप संख्या।:
KF001-2
सामग्री:
स्टेनलेस स्टील
सामग्री सुविधा:
गर्मी प्रतिरोधी, आग प्रतिरोधी
आवेदन:
रासायनिक उद्योग, अनाज परिवहन, खनन परिवहन, बिजली संयंत्र
स्थिति:
नया
लागू उद्योग:
विनिर्माण संयंत्र, निर्माण
मशीनरी परीक्षण रिपोर्ट:
प्रदान किया
मुख्य घटक:
बियरिंग, गियरबॉक्स, मोटर
आयाम(एल*डब्ल्यू*एच):
स्वनिर्धारित
सर्पिल व्यास:
अनुकूलित करें
परिवहन पैकेज:
लकड़ी का बक्सा
विनिर्देश:
स्वनिर्धारित
ट्रेडमार्क:
WESEW
मूल:
चीन
आपूर्ति की क्षमता:
500000/वर्ष
पैकेज का आकार:
100.00 सेमी * 100.00 सेमी * 50.00 सेमी
पैकेज सकल वजन:
50.000 किग्रा
बिक्री के बाद सेवा:
प्रदान किया
गारंटी:
1 वर्ष
संरचना:
कन्वेयर सिस्टम
अनुकूलन:
उपलब्ध अनुकूलित अनुरोध
शिपिंग लागत:
शिपिंग लागत और अनुमानित डिलीवरी समय के बारे में।
मुद्रा:
अमेरिकी डॉलर$
वापसी एवं धनवापसी:
आप उत्पाद प्राप्त होने के 30 दिन बाद तक रिफंड के लिए आवेदन कर सकते हैं।
पैकेजिंग विवरण:
लकड़ी का केस
आपूर्ति की क्षमता:
कांच की बोतल, प्लास्टिक की बोतल
उत्पाद का वर्णन
Customized Screw Conveyor with Hopper
Designed for conveying flour, stainless steel-compatible materials, and various food ingredients.
Specifications
Model 110mm 140mm 160mm 219mm 273mm
Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Motor Power 1.5-2.2kw 1.5-2.2kw 2.2-3kw 3-4kw 5.5-7.5kw
Hourly Output 1t/h 1.5-2t/h 2-3t/h 3-5t/h 5-8t/h
The length of the material pipe, lifting height, and hopper size can be customized according to requirements. Customization based on drawings is also supported.
Core Performance Advantages
  • Hygienic and Corrosion-Resistant Materials: Entire machine made of 304/316L stainless steel with mirror-polished circular hopper and conveyor body. Eliminates dead corners, resists acid and alkali corrosion, meets food and pharmaceutical-grade hygiene standards, enables CIP in-situ cleaning.
  • High-Efficiency Anti-Clogging Design: Large-diameter circular hopper with variable pitch spiral blades ensures uniform material handling and prevents bridging. Suitable for various materials including grains, urea granules, and plastic powders, improving conveying efficiency by 20%.
  • Sealed, Environmentally Friendly & Low-Consumption: Fully enclosed tubular structure with flange-sealed connections prevents material leakage and dust. Modular structure for easy disassembly, wear-resistant key components, low noise operation, and 30% reduced maintenance costs.
  • Flexible Adaptation to Various Scenarios: Supports horizontal and ≤20° inclined installation. Can be equipped with vibrating feeding device for small batch multi-variety materials. Single machine conveying length up to 70 meters.
Typical Application Scenarios
  • Food Processing: Transfer of raw materials such as grains, flour, and milk powder within workshops. Sealed transportation avoids dust contamination and ensures food safety.
  • Fertilizer Production: Precise feeding of urea granules and compound fertilizers. Corrosion-resistant materials suitable for chemical environments, ensuring stable delivery.
  • Plastic Manufacturing: Inter-process conveying of plastic powders and granules. Prevents materials from getting damp and dust from leaking, ensuring product purity.
  • Pharmaceutical & Chemical Industries: Clean transportation of pharmaceutical powders and chemical raw materials. Complies with GMP certification requirements to avoid cross-contamination.

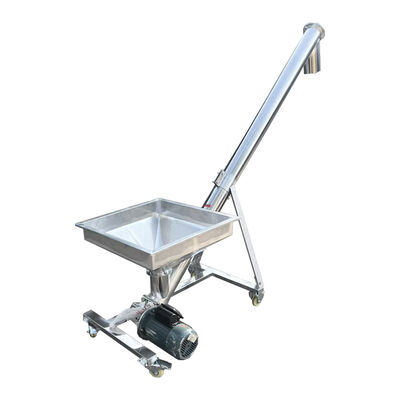

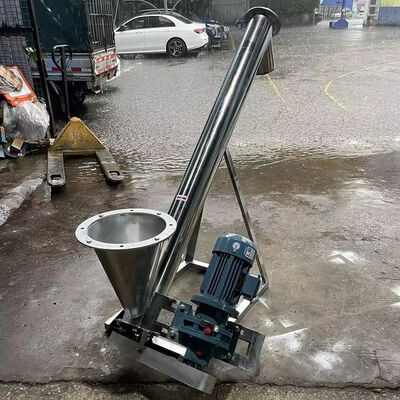

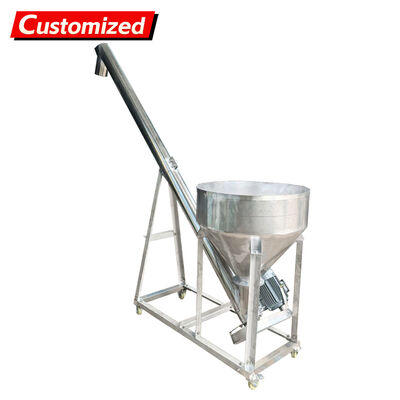

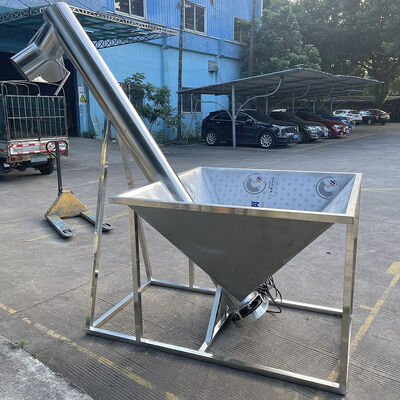

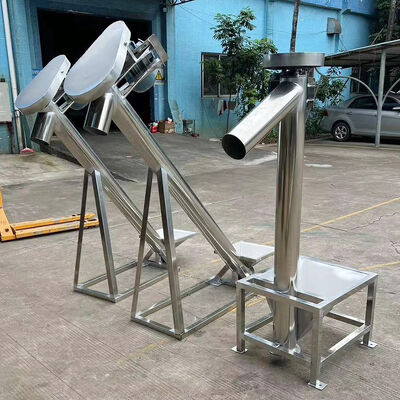

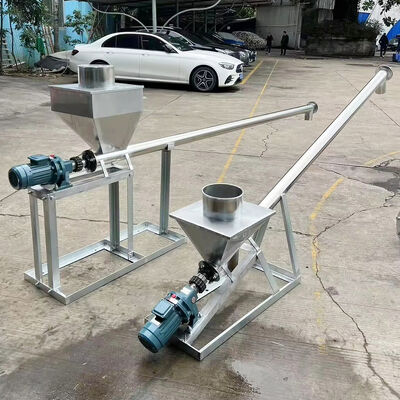

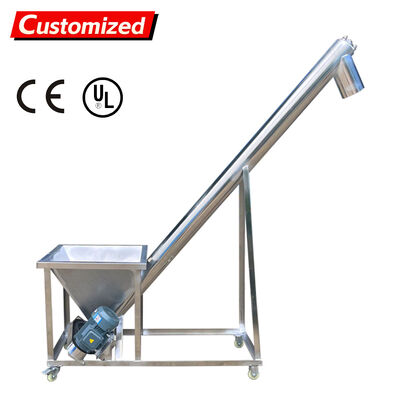

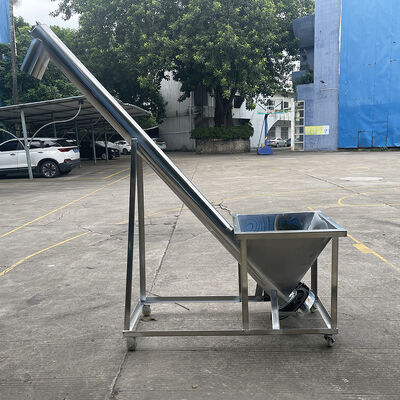

Product Gallery
