Custom Industrial-Grade Coaxial Helical Gear Motor with High Torque Output Wide Input Speed Range and Durable Construction

Custom Industrial-Grade Coaxial Helical Gear Motor with High Torque Output Wide Input Speed Range and Durable Construction

ब्रांड नाम:	WeSeW
एमओक्यू:	1 टुकड़ा
कीमत:	US$200~US$1000/pc
भुगतान की शर्तें:	टी/टी, वेस्टर्न यूनियन
आपूर्ति करने की क्षमता:	कांच की बोतल, प्लास्टिक की बोतल

विस्तार से जानकारी

उत्पाद का वर्णन

विस्तार से जानकारी

उत्पत्ति के प्लेस:

चीन

प्रमाणन:

CE,UL

प्रोडक्ट का नाम:

एडजस्टेबल स्पीड गियर रिड्यूसर मोटर

नाममात्र वोल्टेज:

220V/380V

आवेदन:

फार्म, खुदरा, भवन निर्माण सामग्री की दुकानें, विनिर्माण संयंत्र, मशीनरी मरम्मत की दुकानें

पैकेजिंग विवरण:

लकड़ी का केस

आपूर्ति की क्षमता:

कांच की बोतल, प्लास्टिक की बोतल

प्रमुखता देना:

High Torque Output Coaxial Helical Gear Motor

Wide Input Speed Range Adjustable Speed Gear Reducer Motor

Durable Construction Bevel Motor Gearbox

उत्पाद का वर्णन

Custom Industrial-Grade Coaxial Helical Gear Motor

This high-performance 380V 50Hz AC gear motor features an integrated brake system and delivers exceptional torque output up to 2430 N.M. Designed for demanding industrial applications, it offers reversible operation with output speeds ranging from 0-180 RPM.

Technical Specifications

Gearing Arrangement	Helical Bevel
Output Speed Range	0-180 RPM
Output Torque Range	1.8-2430 N.M
Input Speed Range	0-1500 RPM
Motor Type	K167 KF167 KA167 KAF167
Mounting Position	Flange or Foot Mounted
Weight	1122 KG
Applicable Industries	Energy & Mining
Customization Support	OEM

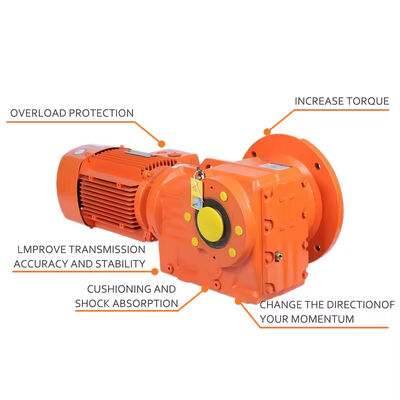

Key Performance Features

High-Torque Output: Delivers up to 2430 N.M torque for robust machinery performance
Wide Input Speed Range: Operates efficiently between 0-1500 RPM for versatile applications
Durable Construction: Manufactured in China with Jiangsu quality standards for long-lasting reliability
Energy Sector Optimized: Specifically designed for demanding energy and mining applications
Cost-Effective Operation: Suitable for low minimum order quantities with energy-efficient performance

Advanced Design Features

Modular Design: Transmission mechanism facilitates easy adaptation to various motor types and power input devices
High Efficiency: Single unit transmission efficiency reaches up to 96% for optimal power utilization
Precise Speed Control: Multiple unit combinations enable larger transmission ratios and lower output speeds
Flexible Installation: Can be mounted horizontally in any position or via flange connection for versatile integration

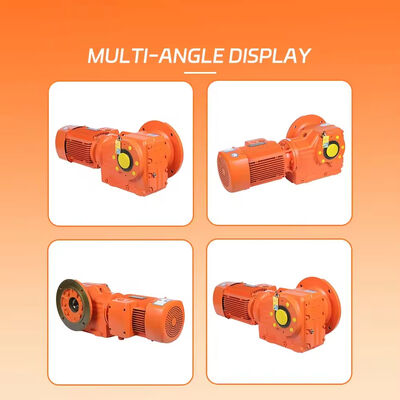

Product Images
